Nonnybest electrical

The device provides both overload (long-time delay) and short-circuit (instantaneous) protection for electrical circuits.

Molded Case Circuit Breaker (MCCB)

The device features a manual knob for manual operation and a switch to select between manual and automatic transfer modes.

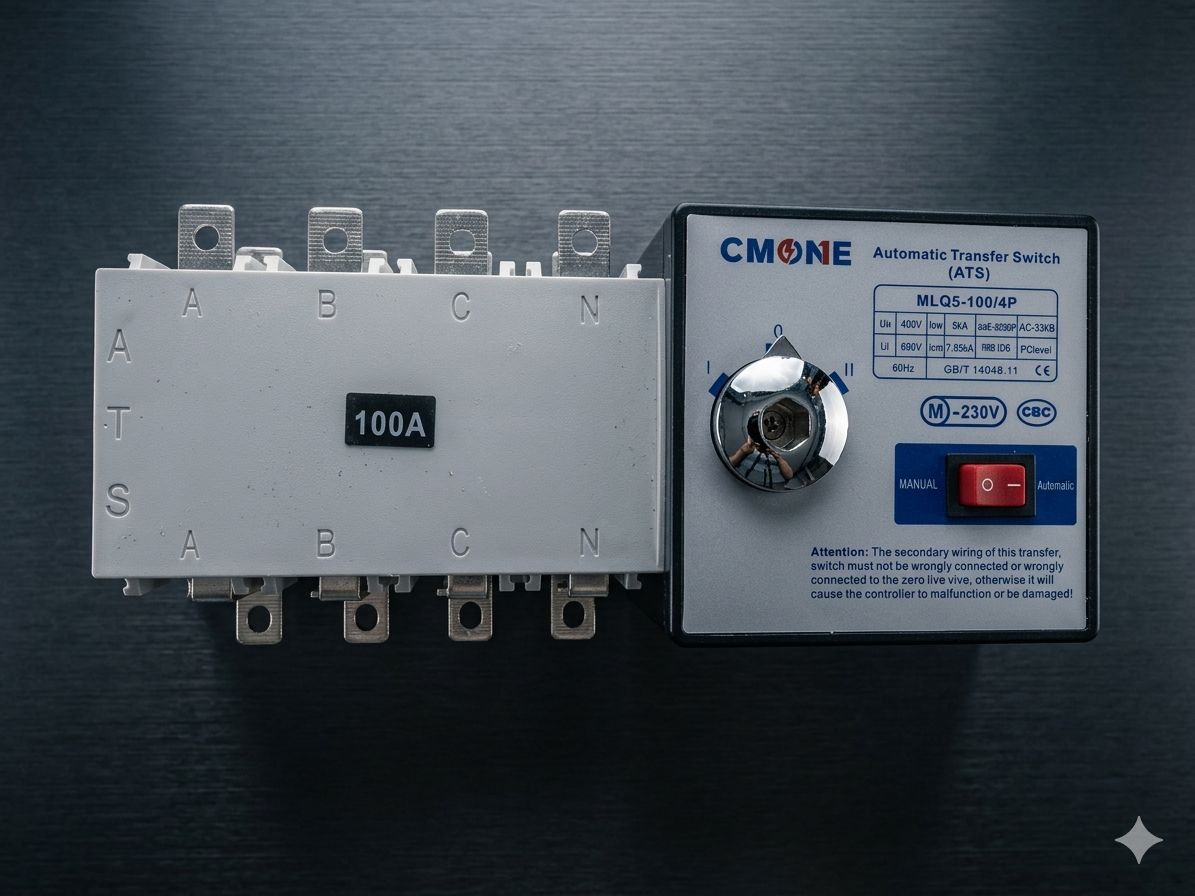

CMONE MLQ5-100/4P Automatic Transfer Switch

The device automatically switches to a backup power source (such as a generator or inverter) when the primary power supply fails.

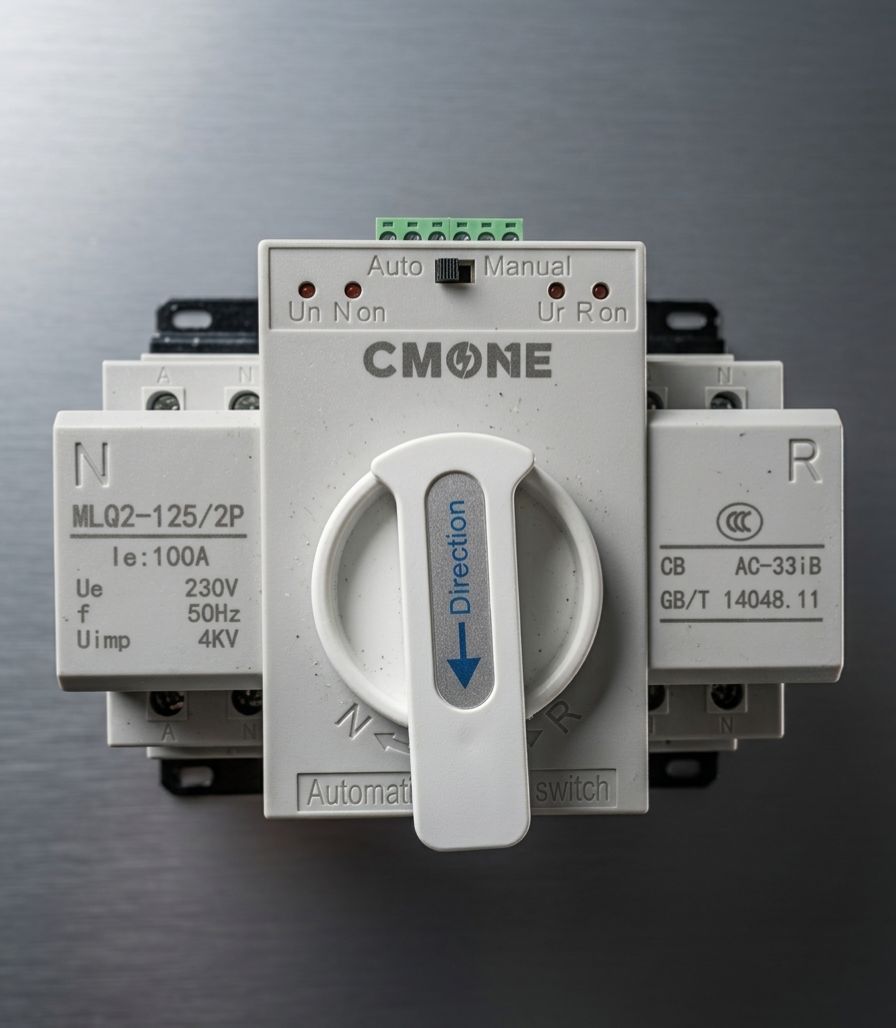

CMONE MLQ2-125/2P Automatic Transfer Switch (ATS)

typically used for solar photovoltaic (PV) systems to protect against overloads and short circuits.

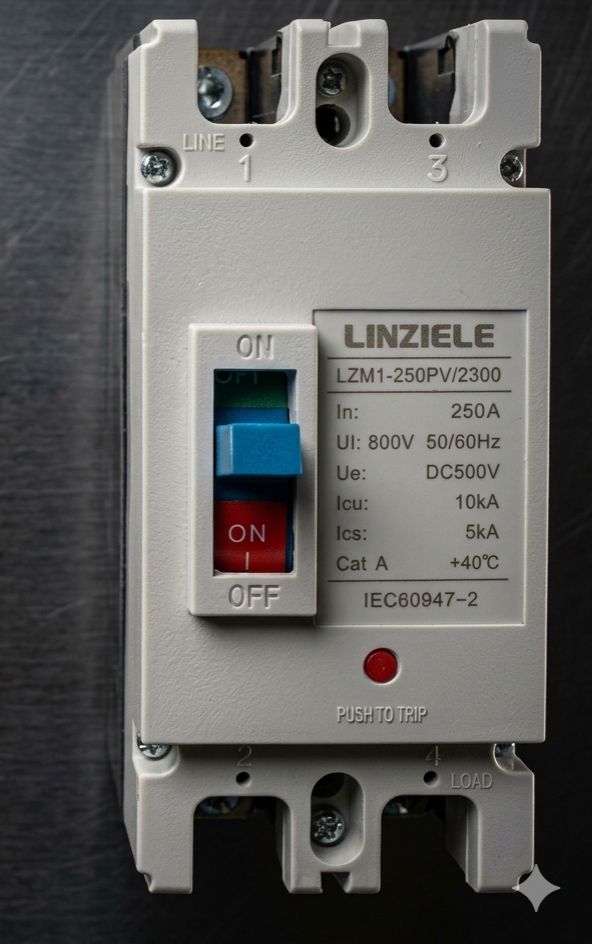

LINZIELE DC Molded Case Circuit Breakers (MCCBs)

Monitors three-phase power to protect against overvoltage, undervoltage, and overcurrent conditions.

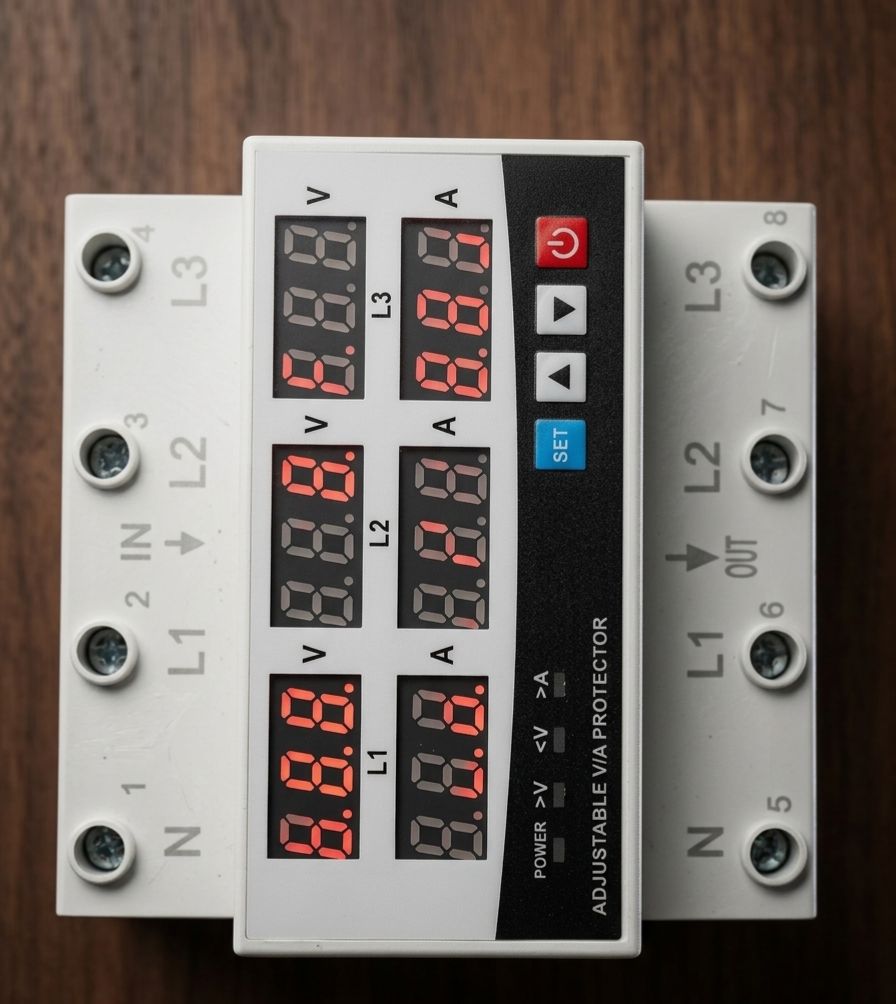

3-Phase Adjustable Voltage

Light up your space with the 100W Solar Street Light, a reliable and energy-efficient lighting solution designed for homes, streets, and commercial areas. This all-in-one unit combines a high-efficiency solar panel, durable lithium battery, and powerful LED chips to deliver bright illumination without electricity costs. Built for outdoor performance, it automatically turns ON at night and OFF during the day, providing hassle-free, maintenance-free lighting all year round. Perfect for areas with unstable power supply, this solar light ensures consistent lighting and enhanced security.

⚙️ Key Features
🌞 Solar Powered – No electricity bills
💡 High Brightness LED – Clear, wide illumination
🔋 Long Battery Backup – 8–12 hours lighting time
🌙 Auto Dusk-to-Dawn – Works automatically
🚶 Motion Sensor – Saves energy, increases brightness when movement is detected
🌧️ IP65 Waterproof – Works in rain and harsh weather
🔧 Easy Installation – No wiring required

⚡ Specifications
Power: 100W
Lighting Area: 80–120 m²
Mounting Height: 3–5 meters
Battery Type: Built-in Lithium Battery
Charging Time: 6–8 hours (sunlight)
Working Time: 8–12 hours
Material: Durable ABS + Aluminum

TPALA 100W Solar Street Light (All-in-One LED – Outdoor)

TPALA 300W Double-Head Solar Street Light is a powerful outdoor lighting solution designed for wide-area illumination. With its dual-head design, it spreads light evenly across both sides, making it ideal for streets, estates, and commercial spaces. This all-in-one system includes a high-efficiency solar panel, lithium battery, and smart controller, ensuring reliable lighting without electricity costs.

⚙️ Key Specifications
Power: 300W
Design: Double-head (dual LED lamps)
Battery Type: Built-in Lithium Battery
Solar Panel: High-efficiency mono/poly panel
Lighting Mode: Automatic dusk-to-dawn
Sensor: Motion detection (energy saving)
Control: Remote control included
Waterproof Rating: IP65 (rain & dust resistant)
Installation: Pole / wall mount

🔌 Key Features
🌟 Dual-head design for wider coverage
🔋 Long battery backup (8–12 hours lighting)
🌙 Auto ON at night / OFF during the day
⚡ Zero electricity cost (solar powered)
🌧️ Weatherproof for outdoor use
🎮 Remote control for brightness & timing
⚡ Coverage & Performance
Lighting Area: Large (up to ~200–300 sqm)
Height Recommendation: 5–7 meters pole
Brightness: High lumen output for clear visibility

🏠 Best Use Cases
Estates & residential streets
Parking lots
Schools & compounds
Shops & business premises
Security lighting

TPALA 300W Double-Head Solar Street Light

TPALA 400W Double-Head Solar Street Light is a high-performance lighting system designed for large areas and heavy-duty use. Its dual-head design ensures maximum coverage and brightness.

⚙️ Key Features
Power: 400W
Dual high-lumen LED heads
Long-lasting lithium battery
Large area illumination
Smart control (auto + remote)
Heavy-duty waterproof build

⚡ Best For
Highways
Large compounds
Industrial zones

TPALA 400W Double-Head Solar Street Light

TPALA 200W Solar Street Light is a compact and efficient lighting solution designed for residential areas, small compounds, and pathways. It provides bright illumination while using solar energy, eliminating electricity costs.

⚙️ Key Features
Power: 200W
Built-in solar panel & lithium battery
Automatic dusk-to-dawn operation
Motion sensor for energy saving
Waterproof (IP65 rated)
Easy pole or wall mounting

⚡ Best For
Homes & compounds
Small streets
Security lighting

200W Solar Street Light

CMONE DC Surge Protector (MLY1-C40) is a high-performance protection device designed to protect solar power systems and DC circuits from lightning strikes, voltage spikes, and electrical surges. Installed between your solar panels and inverter, this device safely diverts excess voltage to ground, preventing damage to expensive equipment like inverters, batteries, and charge controllers. Built for harsh environments, it is ideal for residential, commercial, and industrial solar installations.

⚙️ Key Specifications
Brand: CMONE
Model: MLY1-C40
Rated Voltage (Uc): 1000V DC
Maximum Discharge Current (Imax): 40kA
Nominal Discharge Current (In): 20kA
Voltage Protection Level (Up): ≤ 3.2kV
Poles: 2P (DC+ / DC− protection)
Mounting: DIN Rail
Standard: IEC / GB/T18802 compliant

🔌 Key Features
Protects against lightning & surge damage
Dual protection (DC+ and DC− lines)
Fast response time (nanoseconds)
Visual status indicator (green = working)
Easy DIN rail installation
Replaceable module design
⚡ What It Does
👉 When a surge occurs:
Absorbs excess voltage
Diverts it safely to earth (ground)
Prevents damage to your system
⚡ Where It Is Used
✅ Common Applications:
Solar panel arrays (PV side protection)
Between panels → inverter
Combiner boxes
DC distribution boards
Off-grid & hybrid solar systems
🔋 System Compatibility
12V / 24V / 48V solar systems
3KVA – 10KVA inverters
Lithium & tubular battery setups
All solar PV installations up to 1000V

⚡ What It Protects
Solar panels
Inverters (like Ragnar 6)
Lithium batteries (like C-Worth 15kWh)
Charge controllers
DC wiring systems

CMONE DC Surge Protection Device (SPD) – 1000V | 40kA | Dual Pole

Digital Voltage Protector is an intelligent protection device designed to safeguard your electrical appliances and solar/inverter systems from voltage fluctuations, surges, and abnormal power conditions. Unlike stabilizers, this device does not regulate voltage, it automatically cuts off power when voltage is too high or too low, then restores it when it becomes stable. It prevents damage to expensive equipment like inverters, refrigerators, TVs, and air conditioners.

⚙️ Key Specifications
Rated Voltage: 220V – 240V AC
Frequency: 50/60Hz
Current Range: 1 – 63 Amps (adjustable depending on model)
Display: Digital LED voltage display
Installation: DIN Rail (distribution board mounting)
Power Consumption: <2W
🔧 Core Protection Features
✅ Over-voltage protection
✅ Under-voltage protection
✅ Over-current protection
✅ Surge / spike protection
✅ Automatic power cut-off
✅ Auto recovery when voltage stabilizes
✅ Adjustable delay time (prevents frequent ON/OFF)

👉 It disconnects power when voltage goes outside safe limits to prevent damage to appliances.
Monitors incoming electricity continuously
If voltage is too high or too low → cuts power instantly
Waits (delay time) before restoring power
Reconnects only when voltage is stable

⚡ What It Can Protect
🏠 Home Use:
Refrigerators / Freezers
TVs & Decoders
Fans & Lights
Air Conditioners
Washing Machines
🔋 Solar / Inverter Systems:
Hybrid inverters
Lithium batteries
Solar charge controllers

Digital Voltage Protector

The ELEET 63A DC Breaker is a reliable protection device designed for medium-capacity solar systems, battery banks, and inverter installations. It safeguards your system from overload, short circuit, and electrical faults, ensuring stable and safe operation. Perfect for solar installations, this breaker provides fast disconnection during faults, preventing damage to your inverter, batteries, and wiring.

⚙️ Key Specifications
Brand: ELEET
Rated Current: 63 Amps
Voltage Rating: 500V – 1000V DC (solar systems)
Poles: 1P / 2P (depending on model)
Breaking Capacity: ~6kA
Trip Type: Thermal-Magnetic
Mounting Type: DIN Rail
Operation: Manual ON/OFF

🔌 Key Features
Protects solar panels, batteries, and inverter
Fast fault isolation (prevents damage)
Compact design for easy installation
Built specifically for DC systems (solar use)
Prevents overheating and fire risks
Durable and long-lasting
⚡ Where It Is Used
✅ Common Applications:
Between solar panels → inverter (PV protection)
Between battery → inverter (mid-size systems)
Solar combiner boxes
Medium residential solar setups
👉 A 63A DC breaker is commonly used for DC distribution panels and battery connections

🔋 System Compatibility
24V / 48V systems
3KVA – 6KVA inverters
Lithium & tubular batteries
Hybrid and off-grid solar systems

⚡ What It Protects
Inverters
Battery banks
Solar charge controllers
DC wiring systems

ELEET 63A DC Breaker

The ELEET 32A DC Breaker is a compact and reliable protection device designed for small to medium solar systems. It protects your solar setup from overcurrent, overload, and short circuits, ensuring safe operation of your inverter, battery, and solar panels. This breaker is ideal for isolating power during maintenance and preventing damage to sensitive components in your system.

⚙️ Key Specifications
Brand: ELEET
Rated Current: 32 Amps
Voltage Rating: Up to 500V – 1000V DC
Poles: 1P / 2P (depending on model)
Breaking Capacity: ~6kA
Trip Type: Thermal-Magnetic
Mounting Type: DIN Rail
Operation: Manual ON/OFF

🔌 Key Features
Protects solar panels, batteries, and inverter
Fast disconnection during faults
Compact design (ideal for small installations)
Easy installation on DIN rail
Designed specifically for DC systems (solar use)
Prevents fire and system damage

⚡ Where It Is Used
✅ Common Applications:
Between solar panels → charge controller/inverter
Small battery banks
Solar combiner boxes
Low-load solar systems

🔋 System Compatibility
12V / 24V / 48V solar systems
Small inverters (1KVA – 3KVA)
Solar street lights
CCTV & backup systems

⚡ What It Protects
Solar panels
Charge controllers
Batteries
Small inverters

ELEET 32A DC Breaker (Solar Protection Switch)

ELEET 125A DC Breaker is a high-performance protection device designed for solar power systems, battery banks, and inverter installations. It protects your system from overload, short circuit, and electrical faults, ensuring safe and reliable operation. This breaker is essential for isolating power between solar panels, batteries, and inverters, making maintenance and emergency shutdowns safe and easy.

⚙️ Key Specifications
Brand: ELEET
Rated Current: 125 Amps
Voltage Rating: Up to 1000V DC (typical solar use range)
Poles: 1P / 2P (depending on model)
Breaking Capacity: ~10kA
Trip Type: Thermal-Magnetic (automatic protection)
Mounting Type: DIN Rail / Panel Mount
Operation: Manual ON/OFF switch

🔌 Key Features
Protects inverter, battery & solar system
Fast disconnection during faults
Prevents fire and equipment damage
Compact and easy to install
Suitable for both residential & commercial solar systems
Designed for DC systems (important difference from AC breakers)

👉 DC breakers are specifically built to safely interrupt current without dangerous arcing, which is critical in solar systems

⚡ Where It Is Used
✅ Applications:
Between solar panels → inverter
Between battery → inverter
Solar distribution boards
Off-grid and hybrid systems

🔋 System Compatibility
48V battery systems
5KVA – 10KVA inverters
Lithium or tubular battery setups
Solar panel arrays

🏠 What It Protects
Inverters (like Ragnar 6)
Lithium batteries (like C-Worth 15kWh)
Solar charge controllers
Electrical wiring

ELEET 125A DC Breaker (Solar Protection Switch)

Lithium Battery C-worth
The C-Worth 15kWh Lithium Battery is a high-capacity energy storage solution designed for solar systems, inverters, homes, and commercial use. Built with advanced LiFePO4 (Lithium Iron Phosphate) technology, it delivers long lifespan, high efficiency, and stable power output. This battery provides reliable backup power, stores solar energy efficiently, and reduces dependence on fuel generators. It is perfect for pairing with 5KVA – 10KVA hybrid inverters like the Ragnar 6 you showed earlier.

⚙️ Key Specifications
Battery Capacity: 15kWh
Nominal Voltage: 51.2V (48V system)
Battery Type: LiFePO4 Lithium (safe & long-lasting)
Rated Power Output: 5120W continuous
Peak Power: 10,240W
Max Charge/Discharge Current: 200A
Recommended Current: ≤100A

🔋 Performance
Cycle Life: 6000+ cycles (≈10–15 years lifespan)
Depth of Discharge: 80% (usable capacity)
Efficiency: High (minimal energy loss)

🔌 System Features
Expandable: Up to 6 batteries in parallel
Protection: Overcharge, over-discharge, temperature protection
Operating Temperature: -10°C to 60°C
Protection Rating: IP21 (indoor use)

⚡ What This Battery Can Power
✅ Can Power: 👉 When paired with a 5–6KVA inverter:
Entire house lighting (24–48 hours depending on usage)
TVs, decoders, fans
Refrigerator / freezer
Laptops & desktops
Routers & CCTV
1–2 Air Conditioners (short duration or optimized use)
