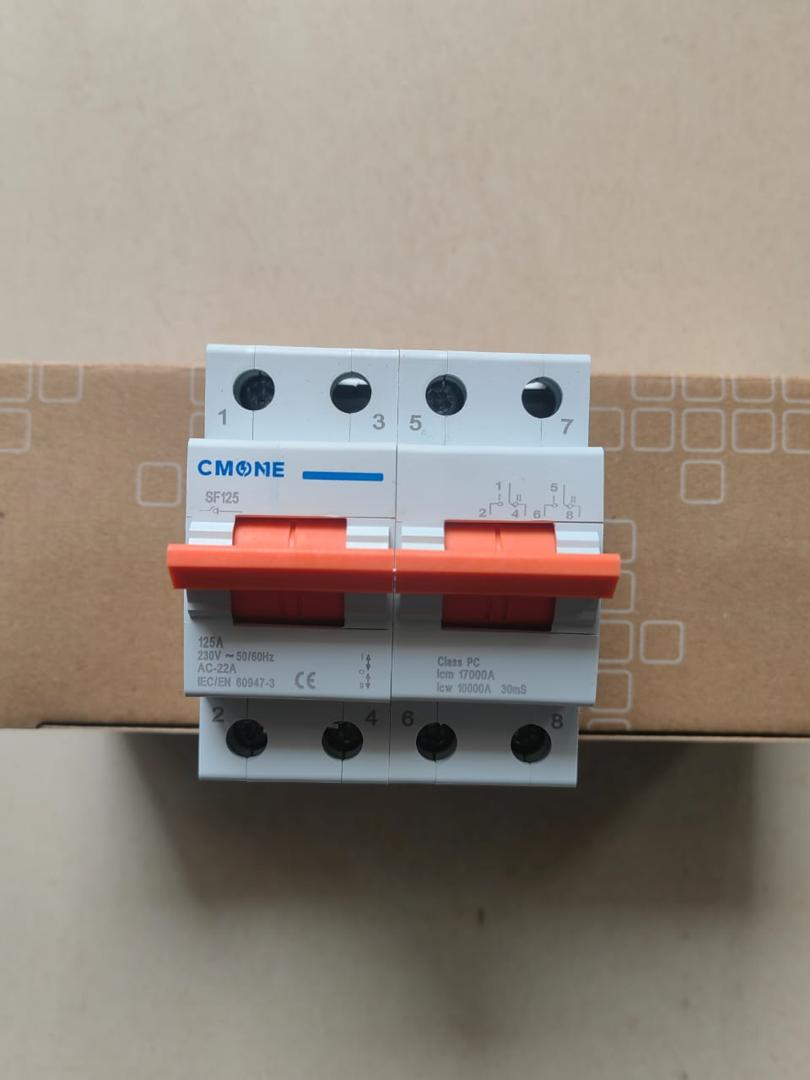

The CMONE SF125 125A Manual Changeover Switch is a heavy-duty power transfer device designed for switching between two power sources such as the grid and a generator or inverter system. With a higher current capacity and 4-pole design, it is ideal for larger homes, commercial spaces, and industrial setups that require stable and safe power switching.

Key Specifications
Model: SF125
Brand: CMONE
Rated Current: 125 Amps
Rated Voltage: 230V AC
Frequency: 50/60Hz
Poles: 4 Pole (4P)
Standard: IEC/EN 60947-3
Class: PC
Mounting: DIN Rail
Terminals: 8 (for full phase + neutral switching)

Key Features
High Load Capacity (125A): Suitable for large electrical systems
4-Pole Switching: Disconnects both live and neutral for maximum safety
Dual Power Switching: Grid ↔ Generator / Inverter
Manual Lever Control: Strong, reliable switching mechanism
Fast Switching Performance: Designed for minimal delay
Industrial Grade Build: Durable and long-lasting
Clear Terminal Labeling: Easy wiring and installation

Applications
Large residential buildings
Commercial properties (shops, offices)
Solar and inverter systems
Generator backup systems
Industrial control panels
What It Can Handle

This 125A switch can support:
Full building electrical loads
High-capacity inverters and solar systems
Multiple AC units, pumps, and heavy appliances
Why This Product Stands Out
Higher capacity than standard 63A switches
Safer full isolation (4-pole switching)
Built for demanding environments
Reliable during frequent power outages

Installation Note
Must be installed by a qualified electrician due to high current capacity and multi-phase wiring.
